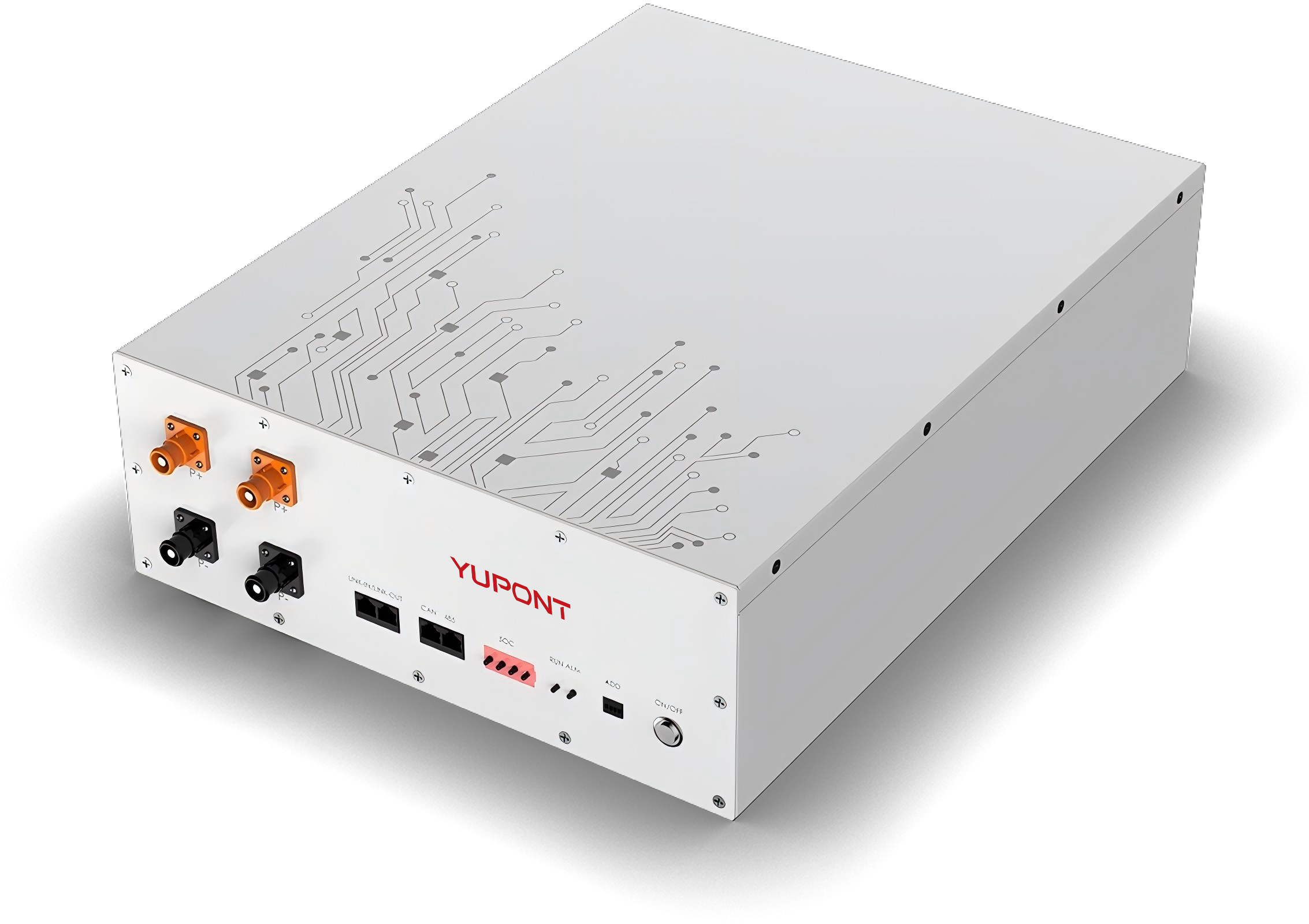

51.2V 100Ah

Long Life Li-ion Battery

  1. Home
  2. »
  3. Products
  4. »
  5. 51.2V 100Ah Long Life Li-ion Battery

Product Features

SAFETY

  • Long life type prismatic LiFePO4 cells, suitable for energy storage application.

DESIGN

  • -20℃~+60℃ widely temperature range.
  • Maintenance free.

SCALABILITY

  • Parallel support for more energy.
  • Flexible and easily installation,rack mounted or wall mounted.

BMS

  • Independent protection for charge and discharge.
  • SOC,SOH display and PC software for detailed operation.

System Technical Specifications

Download

Model

Nominal Voltage [V] 51.2
Nominal Capacity [Ah]100
Total Energy [kWh]5.12
Max. Charging Continuous Current [A]100
End Of Charging Voltage [V]57.6
Max. Discharging Continuous Current [A]100
End Of Discharge Voltage [V]44.8
Dimension (W*D*H,mm)400*520*145
Weight [Kg]40.5
Protection ClassIP20
Operation Humidity0~95%RH (No Condensing)
Operating Temperature RangeCharge:0~+55℃；Discharge:-20℃~+60℃
Cycle Life5000 @25℃, 0.5C, 90%DOD, 80%EOL               6000 @25℃, 0.5C, 90%DOD, 70%EOL
ProtectionOver Charge, Over Discharge, Over Current, Over Temperature And Low Temperature Protection
MOFESTAutomatic Cutting Out
Communication PortRS485 & CAN (Pack To Pcs), RS485 (Pack To Pack)
CertificationUN38.3, MSDS
Serial SupportNo Support
Parallel SupportYes, Max 15 PCS
Optional PartsHeater
Connecting Terminal100A, 4P
Circuit Breaker125A, 1P

Over-Charge Alarm & Protection

Over-Charge Alarm 3.5V(For Cell)  52.5V(For Pack)
Over-Charge Protection3.65V(For Cell)  54.75V(For Pack)
Over-Charge Protection Delay1000ms
Over-Charge Release3.45V(For Cell)  51.75V(For Pack)

Over-Discharge Alarm & Protection

Over-Discharge Alarm 2.9V(For Cell)  43.5V(For Pack)
Over-Discharge Protection 2.7V(For Cell)  40.5V(For Pack)
Over-Discharge Protection Delay 1000ms
Over-Discharge Release 2.95V(For Cell)  44.25V(For Pack)
